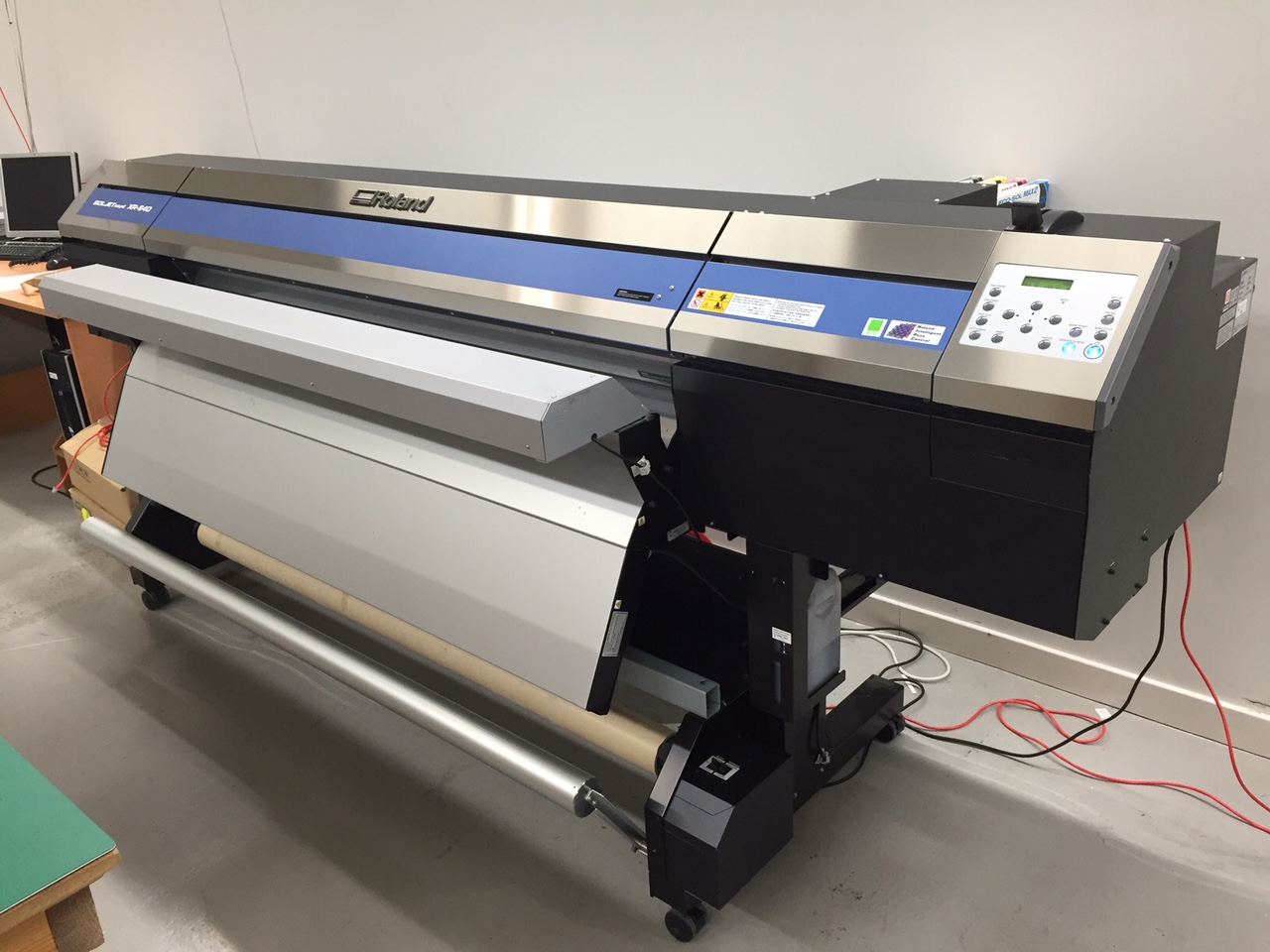

Service Manual and Parts List Manual Roland SolJet Pro 4 XR-640;
This manual is in the PDF format and have detailed Diagrams, pictures and full procedures to diagnose and repair your Roland SolJet.
You can print, zoom or read any diagram, picture or page from this Service Manual and Parts List Manual. Every chapter on this manual is fully detailed and contain all the simulation codes, trouble codes, maintenance procedures, reset procedures, diagnose procedures of Roland SolJet Pro 4 XR-640. You can find easily everything what do you need.
To see what contain, please read table of contents:

1. Structure & Spare Parts
1-1 COVER
1-2 FRAME and DRIVE UNIT
1-3 RAIL UNIT
1-4 HEAD CARRIAGE
1-5 TOOL CARRIAGE
1-6 BED
1-7 CHASSIS
1-8 PINCH ROLLER
1-9 WIPE SYSTEM
1-10 CAP SYSTEM
1-11 INK SYSTEM
1-12 STAND
1-13 TU CONTROLLER
1-14 ACCESSORIES

2. Electrical Section
2-1 WIRING MAP
2-2 MAIN BOARD
2-3 HEAD BOARD
2-4 SERVO BOARD
2-5 HEATER BOARD
2-6 INK SYSTEM BOARD
2-7 SUB BOARD
2-8 TAKEUP BOARD
2-9 MAINTENANCE PARTS LIST

ROLAND SolJet Pro 4 XR-640 Service Manual. SolJet Pro 4 XR640 Parts List, Service Manual – 271 Pages; File Size: 46 MB Filetype: Adobe Acrobat Document (PDF) All Printer / Copier / Scanner / Fax / Sewing service manual items have had OCR (Optical Character Recognition) run upon them to make them searchable.

3. Replacement of Main Parts
3-1 HEAD REPLACEMENT
3-2 DAMPER REPLACEMENT
3-3 WIPER REPLACEMENT
3-4 FELT WIPER REPLACEMENT
3-5 CAP TOP REPLACEMENT
3-6 TOOL CARRIAGE REPLACEMENT
3-7 CARRIAGE MOTOR REPLACEMENT
3-8 FEED MOTOR REPLACEMENT
3-9 PUMP REPLACEMENT
3-10 INK TUBE REPLACEMENT
3-11 BOARD REPLACEMENT
3-12 BATTERY REPLACEMENT
3-13 CARRIAGE BELT REPLACEMENT
3-14 LINEAR ENCODER BOARD REPLACEMENT
3-15 ENCODER SCALE REPLACEMENT
3-16 PINCH ROLLER REPLACEMENT
3-17 HOW TO FOLD RIBBON CABLE TO THE HEAD
3-18 TAKE-UP BOARD REPLACEMENT

4. Adjustment
4-1 SERVICE MODE
4-2 HOW TO UPGRADE FIRMWARE/INSTALL FIRMWARE
4-3 HOW TO UPGRADE FIRMWARE OF THE NETWORK CONTROLLER
4-4 HEAD ALIGNMENT
4-5 CAP HEIGHT ADJUSTMENT
4-6 LIMIT & CAP POSITION INITIALIZE
4-7 LINEAR ENCODER SETUP
4-8 CROP MARK SENSOR ADJUSTMENT
4-9 CROP-CUT ADJUSTMENT
4-10 PRINT / CUT POSITION ADJUSTMENT
4-11 CALIBRATION (FEEDING DIRECTION)
4-12 TOOL HEIGHT ADJUSTMENT
4-13 TOOL PRESSURE ADJUSTMENT
4-14 BELT TENSION ADJUSTMENT
4-15 BELT POSITION ADJUSTMENT
4-16 TAKE-UP UNIT OPERATION CHECK

5. Supplemental Information
5-1 SPECIAL TOOLS
5-2 SENSOR MAP
